When a road intersects with a natural stream, brook, or drainage path, a properly sized culvert is essential for maintaining water flow and protecting both the roadway and surrounding environment. Undersized or poorly installed culverts can lead to flooding, erosion, road damage, or even failure. Here’s what you need to know about selecting the right size and type of culvert, and why reaching out to your local Soil and Water Conservation District office may be a smart first step.
Why Proper Culvert Sizing Matters
Culverts serve as conduits that carry water safely beneath roads, driveways, and other infrastructure. When they’re too small, water can back up and overflow, washing out the roadway or damaging nearby land. If they’re too large, they may be unnecessarily costly or even alter the flow characteristics of the stream.
Proper culvert sizing is especially critical when dealing with natural water sources, which may vary in flow throughout the year and carry sediment or debris.
Key Factors in Culvert Design
-
Watershed Area
-
Estimate the total area of land draining to the crossing. Larger watersheds generate more runoff.
-
Use topographic maps or GIS tools to define this area.
-
-
Peak Flow Calculations
-
Calculate the peak flow rate for the area using methods like the Rational Method (for small watersheds) or more complex hydrologic models for larger ones.
-
Consider historical rainfall data, soil types, land cover, and slope.
-
-
Culvert Shape and Type
-
Round culverts are common and cost-effective for small to medium flows.
-
Arch, elliptical, or box culverts may be necessary in areas with shallow cover or higher flow requirements.
-
-
Material Selection
-
Corrugated metal is durable and commonly used in rural areas.
-

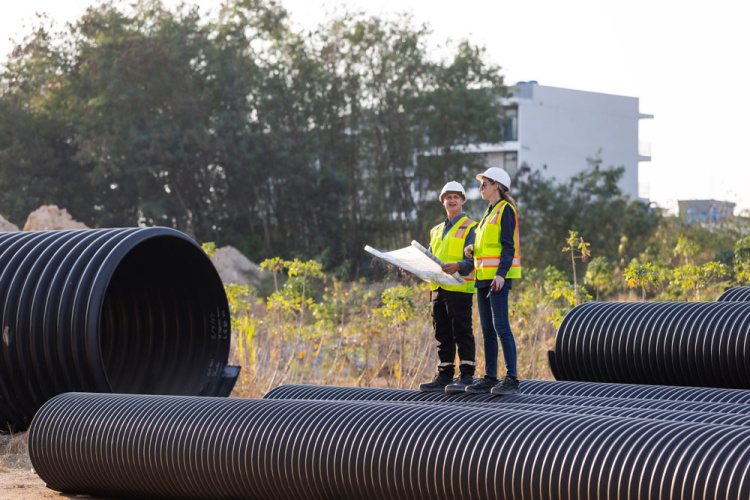

HDPE plastic is lightweight and resistant to corrosion.
-
Concrete box culverts are ideal for high-traffic or high-flow scenarios.
-
-
Slope and Inlet/Outlet Conditions
-
Match the culvert slope to the natural stream gradient to maintain flow and prevent scouring.
-
Use riprap or headwalls to stabilize inlets and outlets as needed.
-
-
Environmental and Permitting Considerations
-
Streams are regulated by environmental agencies, and altering them without proper review may be illegal.
-
Culverts that block fish passage or disrupt wetlands can be denied permits or trigger costly remediation.
-
Contact Your Soil and Water Conservation District
Before finalizing your culvert design, it’s wise, and often required, to contact your county’s Soil and Water Conservation District (SWCD). These offices provide:
-
Site-specific guidance on culvert size and placement
-
Information on permitting requirements (e.g., for stream crossings or wetland impacts)
-
Best practices for erosion control and ecological protection
-
Access to historical flow data and mapping tools
They’re a vital partner in ensuring that road construction and drainage improvements are both functional and environmentally responsible.
Installing the right culvert is more than a matter of convenience. It’s a key component of infrastructure resilience and environmental stewardship. By evaluating watershed dynamics, selecting suitable materials, and consulting with your SWCD, you can avoid costly damage, comply with regulations, and maintain the natural flow of water across your community.
